千分尺量桿167 系列167-368
用于外徑千分尺測量后或開始前準確調零。
Mitutoyo - √中國總代理
- √包郵
- √增值稅票
- √7*15服務

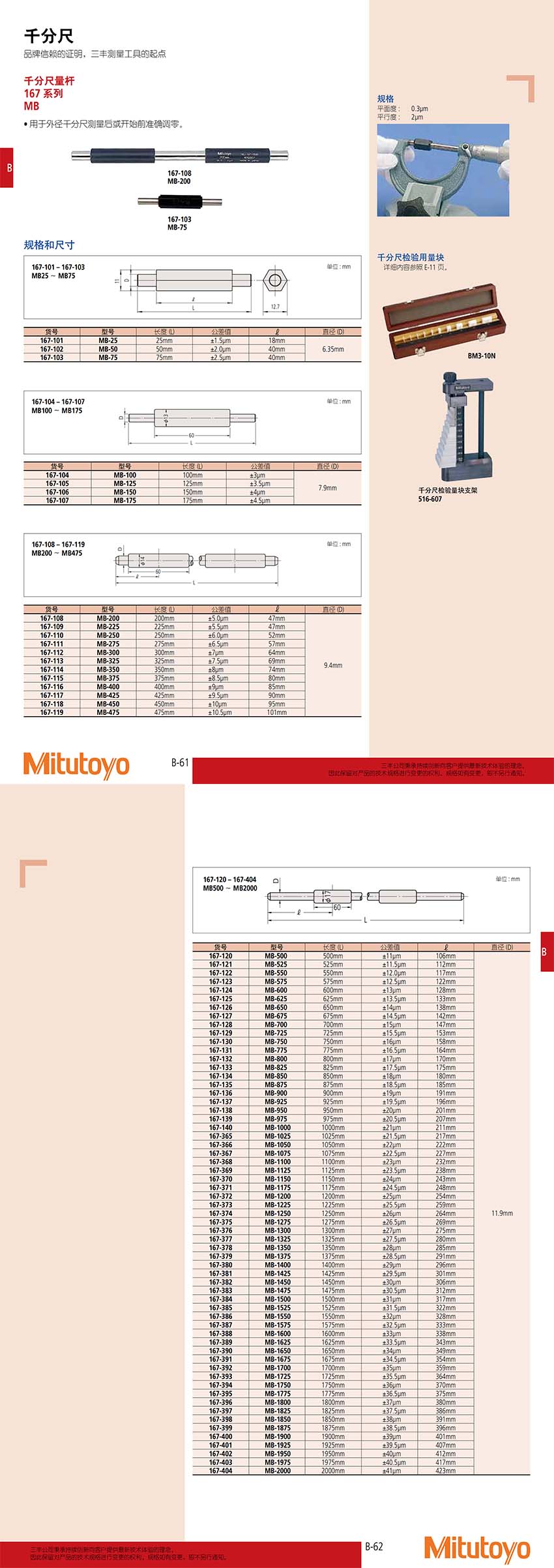

千分尺量桿167 系列167-368規格參數Specs
|
貨號 |
型號 |
長度(L) |
公差值 |
|
直徑(D) |
|
167-120 |
MB-500 |
500mm |
±11μm |
106mm |
11.9mm |
|
167-121 |
MB-525 |
525mm |
±11.5μm |
112mm |
|
|
167-122 |
MB-550 |
550mm |
±12.0μm |
117mm |
|
|
167-123 |
MB-575 |
575mm |
±12.5μm |
122mm |
|
|
167-124 |
MB-600 |
600mm |
±13μm |
128mm |
|
|
167-125 |
MB-625 |
625mm |
±13.5μm |
133mm |
|
|
167-126 |
MB-650 |
650mm |
±14μm |
138mm |
|
|
167-127 |
MB-675 |
675mm |
±14.5μm |
142mm |
|
|
167-128 |
MB-700 |
700mm |
±15μm |
147mm |
|
|
167-129 |
MB-725 |
725mm |
±15.5μm |
153mm |
|
|
167-130 |
MB-750 |
750mm |
±16μm |
158mm |
|
|
167-131 |
MB-775 |
775mm |
±16.5μm |
164mm |
|
|
167-132 |
MB-800 |
800mm |
±17μm |
170mm |
|
|
167-133 |
MB-825 |
825mm |
±17.5μm |
175mm |
|
|
167-134 |
MB-850 |
850mm |
±18μm |
180mm |
|
|
167-135 |
MB-875 |
875mm |
±18.5μm |
185mm |
|
|
167-136 |
MB-900 |
900mm |
±19μm |
191mm |
|
|
167-137 |
MB-925 |
925mm |
±19.5μm |
196mm |
|
|
167-138 |
MB-950 |
950mm |
±20μm |
201mm |
|
|
167-139 |
MB-975 |
975mm |
±20.5μm |
207mm |
|
|
167-140 |
MB-1000 |
1000mm |
±21μm |
211mm |
|
|
167-365 |
MB-1025 |
1025mm |
±21.5μm |
217mm |
|
|
167-366 |
MB-1050 |
1050mm |
±22μm |
222mm |
|
|
167-367 |
MB-1075 |
1075mm |
±22.5μm |
227mm |
|
|
167-368 |
MB-1100 |
1100mm |
±23μm |
232mm |
|
|
167-369 |
MB-1125 |
1125mm |
±23.5μm |
238mm |
|
|
167-370 |
MB-1150 |
1150mm |
±24μm |
243mm |
|
|
167-371 |
MB-1175 |
1175mm |
±24.5μm |
248mm |
|
|
167-372 |
MB-1200 |
1200mm |
±25μm |
254mm |
|
|
167-373 |
MB-1225 |
1225mm |
±25.5μm |
259mm |
|
|
167-374 |
MB-1250 |
1250mm |
±26μm |
264mm |
|
|
167-375 |
MB-1275 |
1275mm |
±26.5μm |
269mm |
|
|
167-376 |
MB-1300 |
1300mm |
±27μm |
275mm |
|
|
167-377 |
MB-1325 |
1325mm |
±27.5μm |
280mm |
|
|
167-378 |
MB-1350 |
1350mm |
±28μm |
285mm |
|
|
167-379 |
MB-1375 |
1375mm |
±28.5μm |
291mm |
|
|
167-380 |
MB-1400 |
1400mm |
±29μm |
296mm |
|
|
167-381 |
MB-1425 |
1425mm |
±29.5μm |
301mm |
|
|
167-382 |
MB-1450 |
1450mm |
±30μm |
306mm |
|
|
167-383 |
MB-1475 |
1475mm |
±30.5μm |
312mm |
|
|
167-384 |
MB-1500 |
1500mm |
±31μm |
317mm |
|
|
167-385 |
MB-1525 |
1525mm |
±31.5μm |
322mm |
|
|
167-386 |
MB-1550 |
1550mm |
±32μm |
328mm |
|
|
167-387 |
MB-1575 |
1575mm |
±32.5μm |
333mm |
|
|
167-388 |
MB-1600 |
1600mm |
±33μm |
338mm |
|
|
167-389 |
MB-1625 |
1625mm |
±33.5μm |
343mm |
|
|
167-390 |
MB-1650 |
1650mm |
±34μm |
349mm |
|
|
167-391 |
MB-1675 |
1675mm |
±34.5μm |
354mm |
|
|
167-392 |
MB-1700 |
1700mm |
±35μm |
359mm |
|
|
167-393 |
MB-1725 |
1725mm |
±35.5μm |
364mm |
|
|
167-394 |
MB-1750 |
1750mm |
±36μm |
370mm |
|
|
167-395 |
MB-1775 |
1775mm |
±36.5μm |
375mm |
|
|
167-396 |
MB-1800 |
1800mm |
±37μm |
380mm |
|
|
167-397 |
MB-1825 |
1825mm |
±37.5μm |
386mm |
|
|
167-398 |
MB-1850 |
1850mm |
±38μm |
391mm |
|
|
167-399 |
MB-1875 |
1875mm |
±38.5μm |
396mm |
|
|
167-400 |
MB-1900 |
1900mm |
±39μm |
401mm |
|
|
167-401 |
MB-1925 |
1925mm |
±39.5μm |
407mm |
|
|
167-402 |
MB-1950 |
1950mm |
±40μm |
412mm |
|
|
167-403 |
MB-1975 |
1975mm |
±40.5μm |
417mm |
|
|
167-404 |
MB-2000 |
2000mm |
±41μm |
423mm |
千分尺量桿167 系列167-368包裝清單Detail
|
名稱 |
貨號 |
宣傳冊 |
操作說明書 |
清單 |
|
千分尺量桿167 系列 |
167-368 |
|
|
/ |
千分尺量桿167 系列167-368售后保障Terms
|
名稱 |
貨號 |
保修天數 |
說明 |
|
千分尺量桿167 系列 |
167-368 |
一年 |
/ |
千分尺量桿167 系列167-368評價曬單Comment
暫無相關評論
